Full automatic tissue film bags packing machine is suitable for fully automatic single-pack packaging of film packaging facial tissues, kitchen paper, V-fold paper towels, napkin tissues.
| Speed: | |
|---|---|
| Tissue length range: | |
| Tissue height range : | |
| Tissue width range: | |
| Equipment size: | |
| Equipment weight: | |
| Packaging Materials: | |
| Quantity: | |
XY-BT-298
XINYUN
XY-BT-298 Full Automatic Facial Tissue Napkin Paper Bags Packing Machinery
Outline
A fully automatic facial tissue napkin tissue packing machine is a sophisticated piece of equipment designed to streamline the production and packaging process of facial tissue and napkin tissue.
Here's a brief introduction:
1. Automation: The machine is fully automatic, which means it can perform the entire process of tissue packaging without the need for manual intervention, from feeding the raw materials to the final packaging.
2. Efficiency: It is designed to operate at high speed, ensuring that a large number of tissues can be packaged in a short amount of time.
3. Quality Control: The machine includes built-in quality control systems that monitor the production process to ensure that every tissue meets the required standards.
4.Versatility: It can handle different sizes and types of tissues, allowing for a variety of products to be produced on the same machine.
5. Hygiene: The machine is designed with hygiene in mind, ensuring that the production environment is clean and that the tissues are not contaminated during the packaging process.
6. Ease of Operation: Despite its complexity, the machine is user-friendly and can be operated by trained personnel with relative ease.
7. Reliability: It is built to be durable and reliable, minimizing downtime and ensuring consistent operation over extended periods.
8. Customization: Many machines offer customization options to meet the specific needs of different manufacturers, such as different packaging sizes.
9. Environmental Considerations: Machines are designed with eco-friendly features, such as energy efficiency.
10. Integration: It can be integrated with tissue folding and cutting machines for a fully automated production line, from the raw material stage to the finished product.
This machinery is essential for manufacturers that produce facial tissues on a large scale, as it significantly reduces labor costs, increases production efficiency, and helps maintain high product quality.
Video Link：
Facial paper packing: https://youtu.be/KcVOCCqf0Q4
Napkin paper packing：https://youtu.be/KV7U9UJuhxg
Main performance and structure features
The fully automatic facial tissue napkin tissue packing machine incorporates several advanced features to enhance its performance and adaptability in the production environment:
1. Wrapping, Hemming, and Sealing: The machine adopts a sophisticated wrapping technique that ensures the tissues are neatly hemmed and sealed, resulting in a compact structure with high aesthetic appeal for the final product.
2. Advanced Control System: It utilizes a step-less frequency conversion system combined with a touch screen and PLC for precise control. This setup provides a clear display and facilitates easy maintenance and troubleshooting.
3.Auto-putting Conveyor: The inclusion of an auto-putting conveyor allows for seamless integration with an automatic production line, reducing the need for manual labor and thus saving on labor costs.
4. Stepless-Speed Regulation: Equipped with dual transducers, the machine can automatically adjust the length of the packing film for optimal packaging, ensuring consistency and efficiency in the process.
5. High Automation and Specialization: The machine boasts a high level of automation and specialization, which translates to high efficiency with minimal operational issues, reducing downtime and maintenance requirements.
6. Adaptability to Different Sizes: It is designed to handle different sizes of facial tissues with ease, thanks to a quick and straightforward changeover facility, enhancing the machine's versatility and flexibility in production.
These features collectively contribute to the machine's ability to meet the demands of modern tissue production, offering a reliable, efficient, and cost-effective solution for manufacturers seeking to automate their facial tissue napkin packaging process.

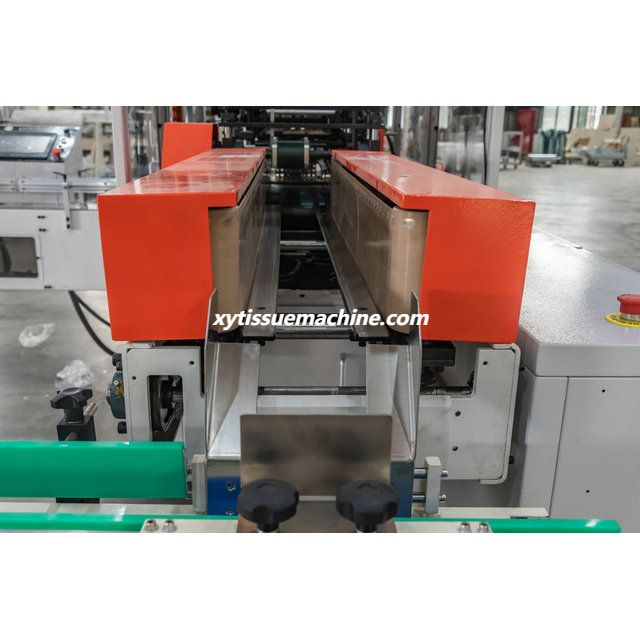

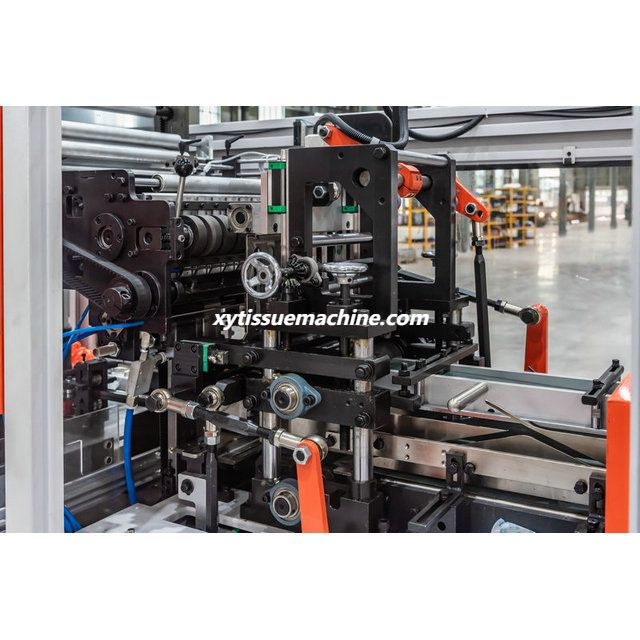

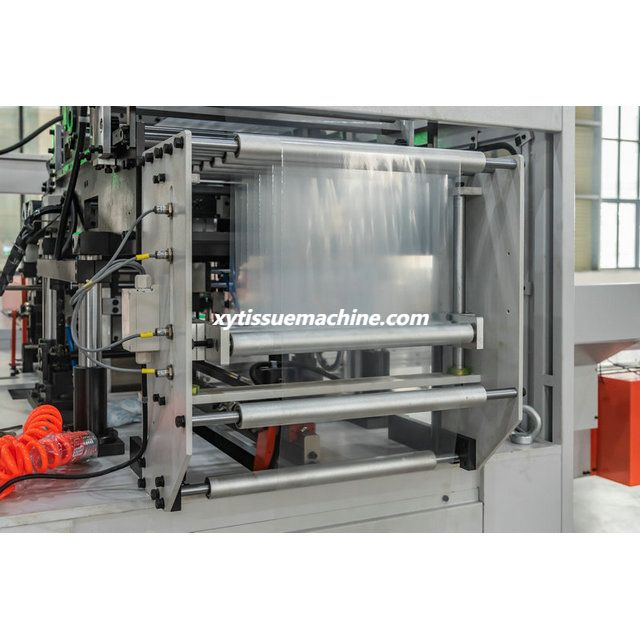

Detailed Pictures
Technical Parameters
Model | XY-BT-298 |
Outline Dimension(L*W*H) | 3560*5885*1925mm |
Speed | 50-70 bags/min |
Packing size(L*W*H) | (100-230)*(90-150)*(40-100)mm |
Machine's Weight | 3000KG |
Motor Consumption | 3.66KW |
Heating Consumption | 3.6KW |
Power | 380V 50Hz |
Power Consumption | 7.26KW |
Packing film | CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides |
Description of Basic Operating Process
Components | Function | Configuration | Description |
Feeding Components | Feeding unit | Frequency conversion, servo drive, belt conveying, pushing, pallet mechanism | Frequency conversion motor, servo motor drive conveyor belt feeding, photoelectric eye automatic counting function, servo control push and pallet mechanism, automatic feeding jam protection function, automatic alarm function |
Film feeding Components | Film feeding unit | Frequency conversion drive, photoelectric detection | The packaging film is conveyed by the film feeding roller driven by the frequency conversion motor, and is delivered to the set packaging area through photoelectric detection. |
Code printer and perforation unit | Code printer and perforation device | When the packaging film passes through the film feeding roller, the code printer installed on the bracket will print the required number according to the demand. There are two types of tear-opening methods: linear and zipper, which are driven by servo or air cylinder respectively. | |
Packaging molding Components | Packaging unit | Strip heating, edge guiding plate, heating plate, high temperature belt. | When the paper product is sent to the set position by the pallet, the packaging film is cut and the paper is pushed by the push rod to wrap and heat the side to complete the side package. The left and right sides are driven by the servo to move the edge guides to fold the edges. The conveyor belt will feed the paper in translation and fold the corners through the fixed edge guides. The output ironing plate and the high temp. belt are heat-sealed to form and convey the finished product. |
Package Flow Diagram

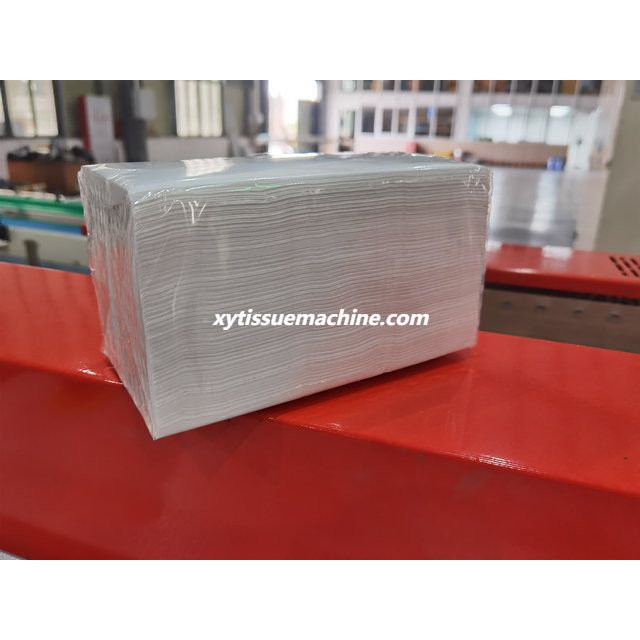

Finished Packing Style
Configuration List
No. | Component name | Brand |
1 | Spindle encoder | Omron |
2 | PLC | Mitsubishi |
3 | Transducer | Mitsubishi |
4 | Control panel | Mitsubishi |
5 | Color code detection component | Germany SICK |
6 | Paper sorting detection sensor | Japan OMRON/South Korea Autonics |
7 | Overload detection sensor | South Korea Autonics |
8 | Three lanes intelligent temperature control modules | China Yudian |
9 | DC voltage stabilization power | French Schneider |
10 | Intermediate relay | French Schneider |
11 | Main power switch | China Geli |
12 | Capacitor | China Mingwei |
13 | Solid relay | China Huanyu/Chaoneng |
14 | Two position switch | French Schneider |
15 | Inching switch | French Schneider |
Production Line
Automatic Box and Bag Packing Facial Tissue Machine Production Line
Video Link: https://youtu.be/JGJOYpjG5MM
https://youtu.be/C6CLxz_XNoY
1) XY-GU-20A Automatic 6 Lines Facial Tissue Paper Making Machine:
The folding machine operates on six parallel lines for maximum efficiency. Engineered for high-volume production, it ensures consistent quality and uniformity across every sheet."
2) XY-GU-281 Automatic Facial Tissue Paper Cutting Machine (single channel):
It is a precision-cutting machine designed for single-channel operation, providing accurate and clean cuts for facial tissue papers. Its automated system ensures uniform sizing and streamlines the production process."
3) XY-BT-298 Automatic Plastic Bags Packing Machine:
The automatic packing machine specializes in plastic bag packaging. It offers a seamless and efficient solution for enclosing facial tissues in protective, branded film bags packaging, enhancing product presentation and shelf appeal."
4) XY-GU-26B Semi Automatic Multi Bags Packing Machine (double heads):
It is a semi-automatic multi-bag packing machine equipped with double heads for increased throughput. It offers flexibility and control, allowing for the simultaneous packing of multiple bags, perfect for medium to high-volume production needs."
5) XY-GU-388 Full Automatic Facial Tissue Box Packing Machine:
The fully automatic facial tissue box packing machine revolutionizes the packaging process. This machine handles everything from box filling to sealing, ensuring a perfect fit and a professional finish for each box."
6) XY-TN-269 Automatic Facial Tissue Multi Box Shrink Packing Machine:
It is an innovative automatic machine designed for multi-box shrink wrapping of facial tissues. It provides a secure and shrink-wrapped packaging solution that is ideal for bulk packaging, enhancing product protection and presentation."
Each of these machines is tailored to specific stages of the facial tissue production and packaging process, ensuring that manufacturers can achieve high-quality output with minimal manual intervention.
