XY-TQ-B
XINYUN
8441809000

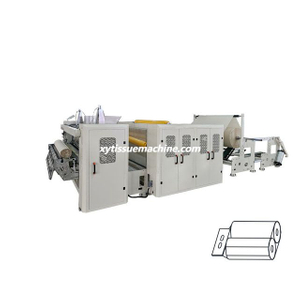

XY-TQ-B New Style Automatic Point to Point Glue Lamination
Two Color Printing Toilet Paper Kitchen Towel Machine
Outline
The color printing toilet paper and kitchen paper machine with glue lamination function has become an ideal choice for toilet paper and kitchen paper production with its high efficiency, versatility and high degree of automation.
Video Link: https://youtu.be/8YliGeZfFO8
Characteristics
1. Double-sided embossing and gluing composite: Compared with single-sided embossing, this machine can make
the paper softer, the finished product has the same double-sided effect, and each layer of paper does not fall apart
during use. It is especially suitable for processing roll kitchen towels. In the finished product of the same size, the
weight can be reduced by 15% or more.
2. Versatility: The machine is equipped with the function of processing coreless, or with paper tube toilet
paper and kitchen towel, which can instantly complete the switching between products, and can also be selected
according to user needs.
3. High degree of automation: Automatic trimming, glue spraying, sealing, and shaft extraction are completed
simultaneously, so that there is no paper loss when the roll paper is transferred to the band saw for cutting and
packaging, which greatly improves the production efficiency and the grade of the finished product. The finished
product has a paper tail, which is convenient for activation.
4. Independent tension adjustment mechanism: pneumatic belt paper feeding, rewinding shaft and each shaft
base paper have independent tension adjustment mechanisms to meet different production needs.
5. High production speed: The production speed can reach 180-230 m/min, which meets the needs of
high-efficiency production.
Main parts of the machine
1. Color Printing Dvice
2. Point to Point Glue Lamination System
3. Upgrade Non Stop Accumulator
Function of small non stop accumulator
After the main machine reaches the set diameter of the finished product, it stops to push the paper, close the edges and seal the tail. At this time, the gluing lamination device does not stop, and runs at a low speed of 5 Hz to keep the glue evenly applied on the paper. The paper delivered is automatically stored by this non stop accumulator with constant tension, which ensures the continuity of gluing and will not cause the problem of a small section of paper without glue. When the main machine is completed and restarted, it automatically balances the tension of gluing lamination system with the main machine.
Function of large non stop accumulator
Double the paper storage capacity. If the diameter of finished tissue roll is less than 150mm, the subsequent color printing and glue lamination devices will keep running at a frequency. The printed pattern will not change the tension of the paper due to sudden acceleration or deceleration, resulting in deviation, and the color registration is more accurate. If the diameter of finished roll is greater than 150mm, the subsequent color printing and glue lamination devices will have more paper storage space, and the acceleration will be softer, and the line speed will be evenly accelerated, so that the printed pattern is not easy to deviate. The gluing lamination device ensures that each section of paper is with glue, and the finished product is rolled more naturally and smoothly!
What’s more, the circuit adds a combination of linear displacement distance measuring device and rotary positioning encoder, adds each inverter interactive module, and the buffer paper storage automatically accelerates and decelerates according to the main machine speed, making the whole machine runs more smoothly!
Machine’s speed with color printing device: 100 meters/minute, (the printing will not dry if the speed is too fast.)
Machine’s speed with glue lamination: 150-200 meters/minute.
Tips:
If you choose machines with color printing, larger non stop accumulator is necessary.
XY-TQ-B New Style Automatic Point to Point Glue Lamination
Two Color Printing Toilet Paper Kitchen Towel Machine
Outline
The color printing toilet paper and kitchen paper machine with glue lamination function has become an ideal choice for toilet paper and kitchen paper production with its high efficiency, versatility and high degree of automation.
Video Link: https://youtu.be/8YliGeZfFO8
Characteristics
1. Double-sided embossing and gluing composite: Compared with single-sided embossing, this machine can make
the paper softer, the finished product has the same double-sided effect, and each layer of paper does not fall apart
during use. It is especially suitable for processing roll kitchen towels. In the finished product of the same size, the
weight can be reduced by 15% or more.
2. Versatility: The machine is equipped with the function of processing coreless, or with paper tube toilet
paper and kitchen towel, which can instantly complete the switching between products, and can also be selected
according to user needs.
3. High degree of automation: Automatic trimming, glue spraying, sealing, and shaft extraction are completed
simultaneously, so that there is no paper loss when the roll paper is transferred to the band saw for cutting and
packaging, which greatly improves the production efficiency and the grade of the finished product. The finished
product has a paper tail, which is convenient for activation.
4. Independent tension adjustment mechanism: pneumatic belt paper feeding, rewinding shaft and each shaft
base paper have independent tension adjustment mechanisms to meet different production needs.
5. High production speed: The production speed can reach 180-230 m/min, which meets the needs of
high-efficiency production.
Main parts of the machine
1. Color Printing Dvice
2. Point to Point Glue Lamination System
3. Upgrade Non Stop Accumulator
Function of small non stop accumulator
After the main machine reaches the set diameter of the finished product, it stops to push the paper, close the edges and seal the tail. At this time, the gluing lamination device does not stop, and runs at a low speed of 5 Hz to keep the glue evenly applied on the paper. The paper delivered is automatically stored by this non stop accumulator with constant tension, which ensures the continuity of gluing and will not cause the problem of a small section of paper without glue. When the main machine is completed and restarted, it automatically balances the tension of gluing lamination system with the main machine.
Function of large non stop accumulator
Double the paper storage capacity. If the diameter of finished tissue roll is less than 150mm, the subsequent color printing and glue lamination devices will keep running at a frequency. The printed pattern will not change the tension of the paper due to sudden acceleration or deceleration, resulting in deviation, and the color registration is more accurate. If the diameter of finished roll is greater than 150mm, the subsequent color printing and glue lamination devices will have more paper storage space, and the acceleration will be softer, and the line speed will be evenly accelerated, so that the printed pattern is not easy to deviate. The gluing lamination device ensures that each section of paper is with glue, and the finished product is rolled more naturally and smoothly!
What’s more, the circuit adds a combination of linear displacement distance measuring device and rotary positioning encoder, adds each inverter interactive module, and the buffer paper storage automatically accelerates and decelerates according to the main machine speed, making the whole machine runs more smoothly!
Machine’s speed with color printing device: 100 meters/minute, (the printing will not dry if the speed is too fast.)
Machine’s speed with glue lamination: 150-200 meters/minute.
Tips:
If you choose machines with color printing, larger non stop accumulator is necessary.
