This packing machine can connect with automatic rewinding machine and cutting machine to be a production line. Only need one person bagging.
| Speed: | |
|---|---|
| Arrangement mode: | |
| Packaging method: | |
| Feed control: | |
| Packing material: | |
| Dimension: | |
| Weight: | |
| Quantity: | |
XY-AI-398E
XINYUN

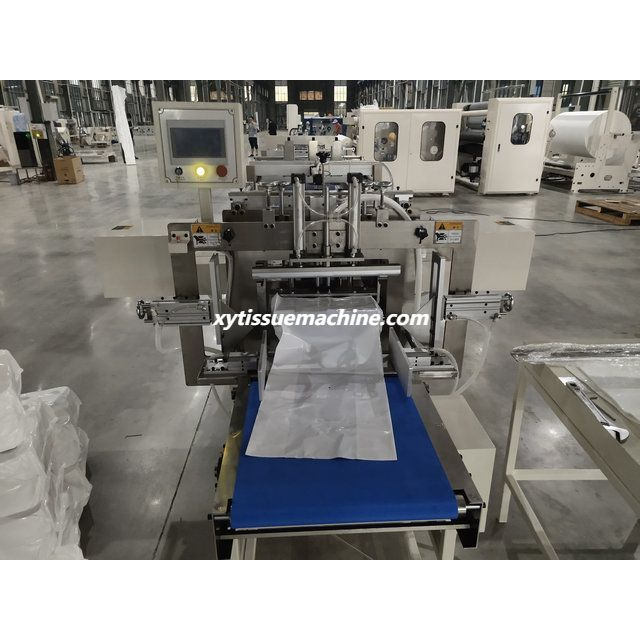

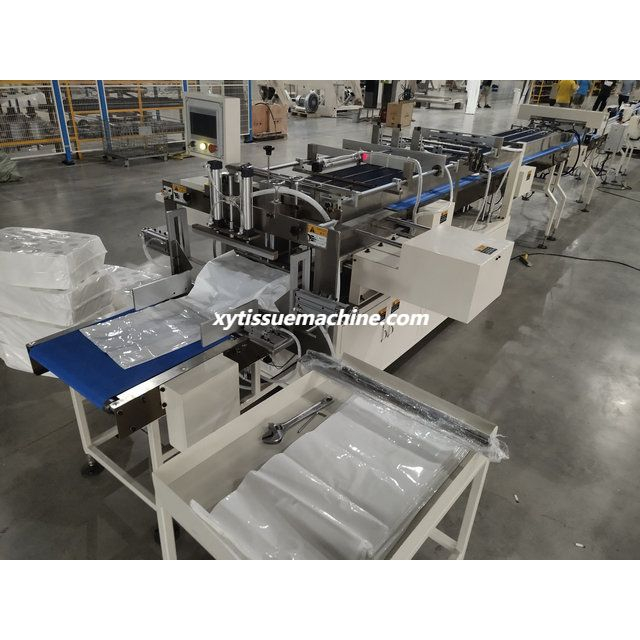

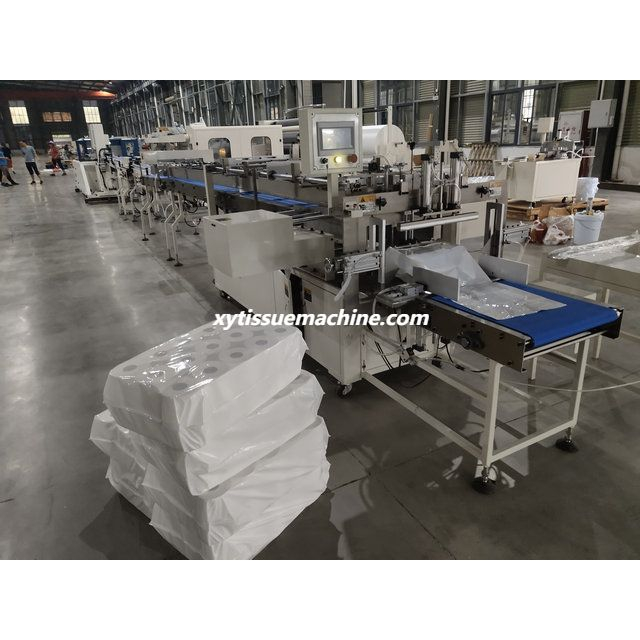

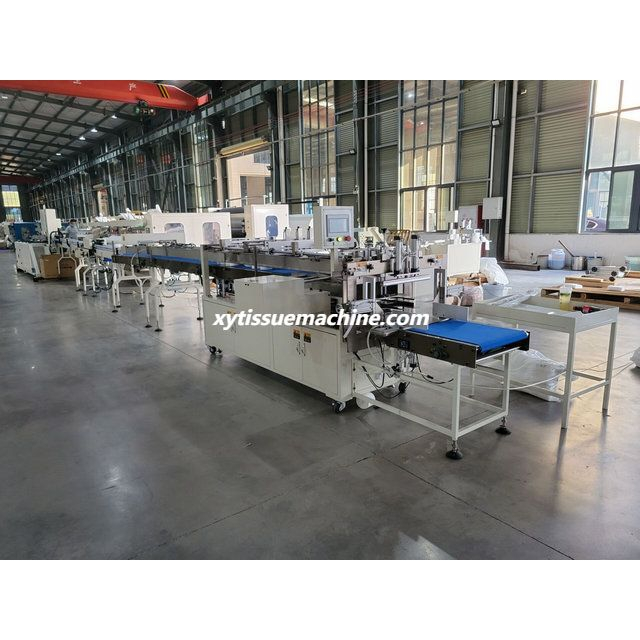

XY-AI-398E Good Price Semi Automatic Toilet
Paper Multi Rolls Packing Machine
Main Features:
1. This equipment can connect with auto cutting machine to be a production line. Only need one person bagging. Conveyor belt automatic conveying, automatic stacking, paper feeding, bagging, sealing and cutting.
2. Adopt PLC computer programming control, double frequency control, touch-screen display parameters, easy to set, temperature control more accurate, more effective protection of hot wire and high temperature resistant adhesive tape.
3. The sealing of package is beautiful and tidy, and is connected with automatic machine to realize the mechanized conveying paper. It only need worker bagging. The speed of whole machine is faster, save labor, reduce production cost, and improve production benefits.
4. Packing speed: 4-6 bag/min
The machine has the advantages of reasonable structure, stable performance, strong material and durability; The main parts of control parts are imported high-quality components, and the rest are the national standard high-quality components.
Video Link: https://youtu.be/S3DP3IQ0uEU
Technical Parameter
No. | Name | Toilet paper roll two layer middle packing machine | Remark | |
General description | ||||
1 | Model | XY-AI-398E | ||
2 | Quantity (set) | 1 | ||
3 | Weight(kg) | 750 | ||
4 | Dimension for main machine(L*W*H)mm | 5000*1800*1500 | ||
Name | Toilet paper roll two layer middle packing machine | Remark | ||
Main design parameter | ||||
1 | Working speed(bag/min) | 4-6bags/min | ||
2 | Arrangement mode | 2 row * (4-6) ranks *2 layer
| As per customers’ requirement | |
3 | Specification of one roll | Diameter：90mm Height：90mm | According to customers’ sample | |
4 | Specification for medium bag packaging(mm) | L | 450 | |
5 | W | 360 | The red words is ordered according to the actual situation | |
6 | H | 90 | ||
7 | Packaging method | Prefabricated bag | ||
8 | Feed control | PLC control automatic feeding | ||
9 | Bagging method | Manual | ||
10 | Packing material | PE,0PP | ||
11 | Sealing quality | no disengage, no melting failure | ||
12 | Film thickness（mm） | 8mm above | ||
13 | Total power | 2.2KW | ||
14 | Supply voltage | 220V 50HZ | ||
15 | Air pressure | 0.5MPA | Should be prepared by end-user | |
Name | Toilet paper roll two layer middle packing machine | Remark | ||
Major component brands | ||||
1 | programmable logic controller | Delta | Sino-foreign joint venture | |
2 | Touch screen | MCGS | Sino-foreign joint venture | |
3 | Three-phase AC motor | Weitewei | Domestic brand | |
4 | Inverter | Inovance | Domestic brand | |
5 | Main bearing | HRB NSK | Domestic brand | |
6 | Sensor | ENKE , Panasonnic | Taiwan brand | |
7 | Photoelectric and proximity switch | Leuze | German brand | |
8 | Solid relay | Yangming | Domestic brand | |
9 | Pneumatic components | AirTAC,Stars | International brand | |

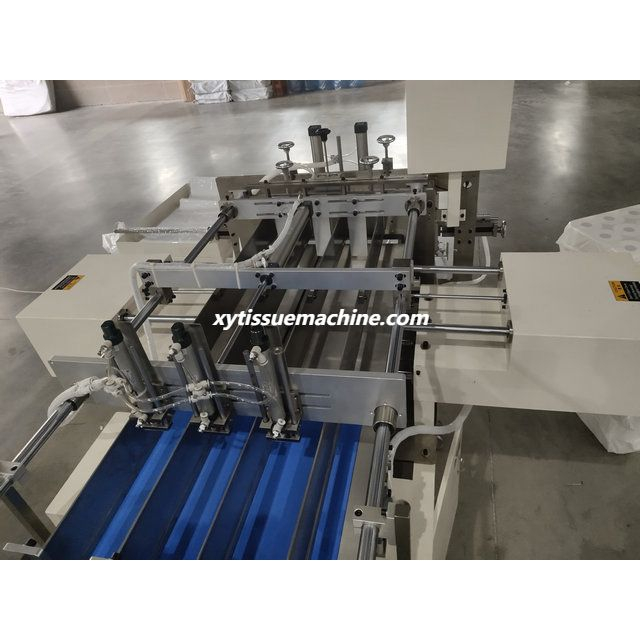

Detailed Picture
Production Line
12 Rolls 1850mm Glue Lamination Toilet Paper Roll Machine Production Line
Video Link: https://youtu.be/JX87tCXKBX8
There are three machines in this production line.
1) XY-TQ-B Full automatic toilet paper making machine
High speed:180-230 meters/min
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-400 Automatic toilet paper band saw cutting machine
Capacity: 80-120 rolls/min Cutting diameter:90-140mm
3) XY-AI-398A Semi automatic multi rolls packing machine with conveyor belt
Capacity: 8-10 bags/min
30 Rolls 2800mm Toilet Paper Roll Machine Production Line
Video Link: https://youtu.be/Rd_eeICrNLk
There are three machines in this production line.
1) XY-TQ-B Full automatic toilet paper making machine
2) XY-AI-400 Automatic toilet paper band saw cutting machine
3) XY-AI-398E 30 rolls semi automatic multi rolls packing machine with conveyor belt
